Synchronous Belt Factory: Technical Audit and RFQ Checklist

A timing-belt quotation may say “8M, 120 teeth, 30 mm width” and still leave the buyer unsure what will arrive. Which 8M tooth form? Which pulley drawing is it supposed to mate with? How was belt length measured? The sample might run quietly on one test stand, then a later batch may need more tension to engage the same pulley. A factory audit should connect those observations to its tools, process records and inspection method.

Bring an actual pulley or its controlled drawing to the review. Those details belong on the drawing. Keep the accepted belt and its inspection sheet too, or the next delivery has no useful physical reference.

Contact SINOCONVE about synchronous belts

01. Start at the pulley and the tooth mold

On the sample bench, put the offered belt onto the actual pulley. Teeth that sit high in the groove deserve investigation, even if the packaging says 8M. Next, follow the belt back to its mold ID. The tool inspection for that ID matters more than a photograph of a pristine mold elsewhere in the workshop.

The factory need not own every possible tooth form. It does need to say which profiles and widths it makes in-house, which require new tooling, and what it sends outside. At the audit, look at one mold's maintenance record and a belt made from that mold. Compare the actual tooth surface and the pulley fit. The timing belt range gives a starting catalogue, but the ordered profile belongs in the controlled specification.

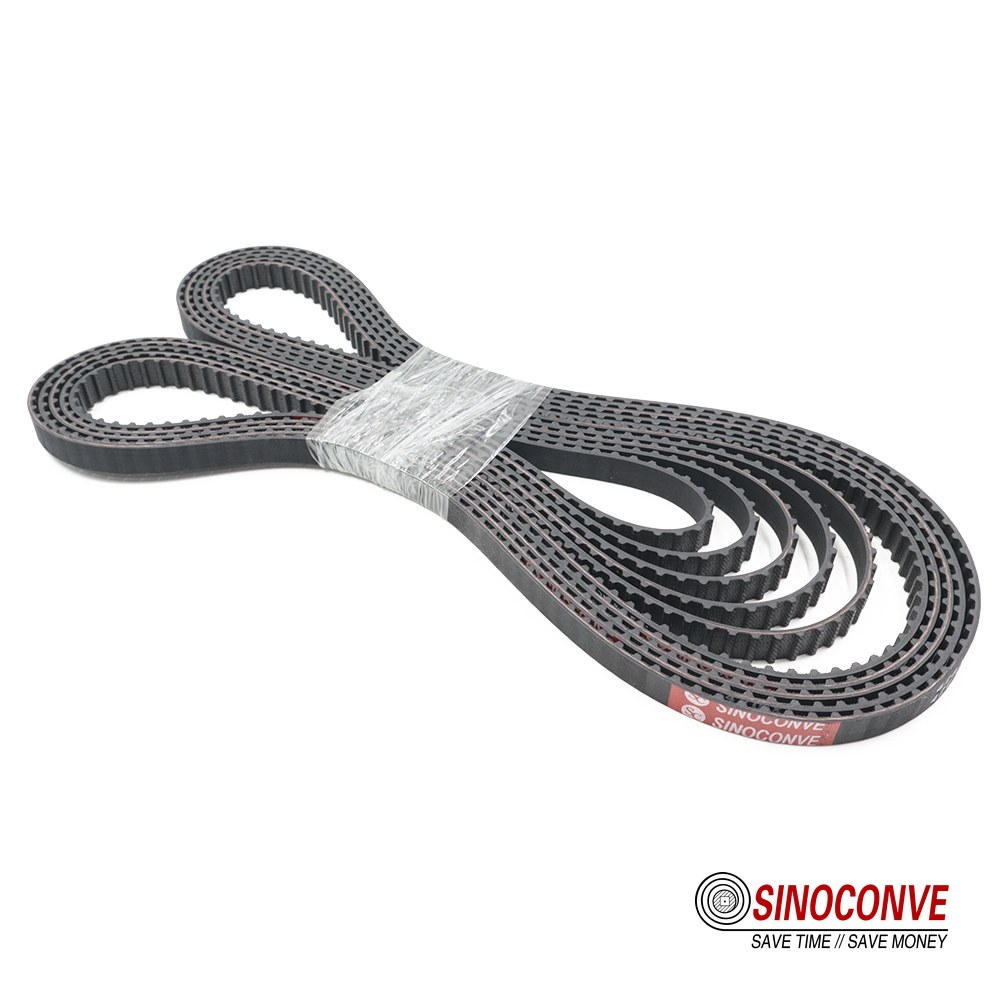

Timing belt loop with molded teeth

02. The cord is hidden; its process should not be

A finished belt hides its tensile member under the rubber or polyurethane. Cord layup is worth watching for a few minutes. Where is the tension indicated, and does anyone record the setting for the run? Take one finished belt number and try to find its cord lot. If that trail stops at a generic material name, a returned belt cannot be traced very far.

The cord choice also needs the machine drawing. Fiberglass, steel and aramid options cannot be ranked on one word such as “stronger”; the pulley size and operating load matter. For a PU belt, say whether the machine takes an endless loop or open length, and show any required fabric or backing.

03. Cure records belong to a batch

Pick a rubber-belt batch already in finished stock. The cure record should show which mold it used, the time and the temperature and pressure recorded through that run. If the press stopped partway through, the disposition of those belts should be visible in the file. A photograph of the equipment does not answer that.

For PU construction, look at its actual molding or joining record. Calling it a rubber cure sheet would only confuse the audit. Follow the settings on that record through to the marked finished pieces.

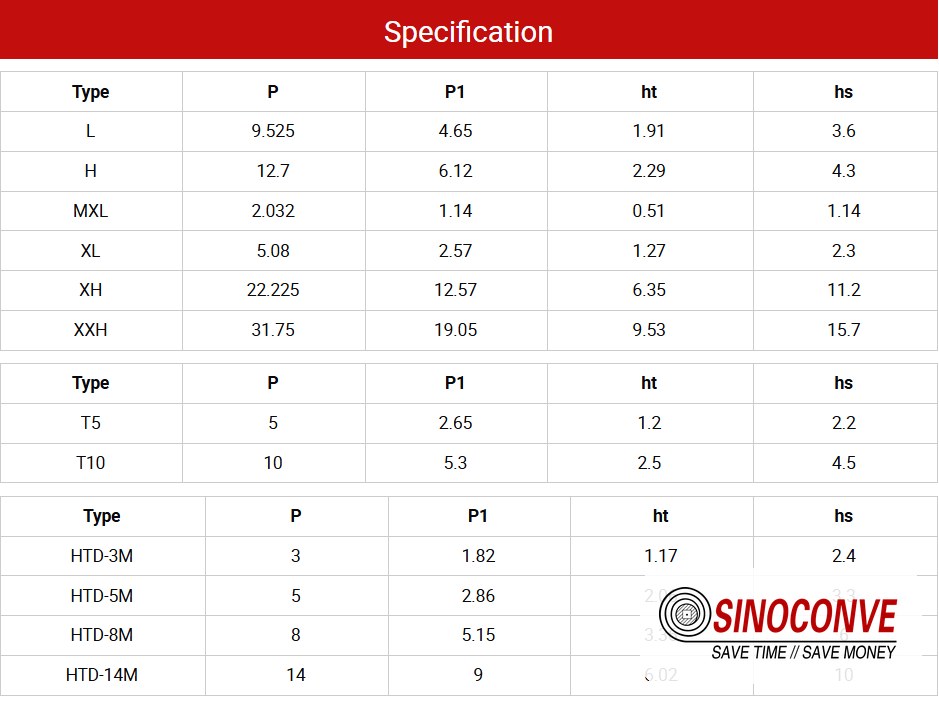

Timing belt profile and specification table

04. How the factory measures pitch and length

A buyer and factory can report different lengths for the same loop if they pull on it differently. Set the sample in the measuring fixture and note the specified load, pulley or gauge, and reading. Ask the factory to print those conditions on its report. That makes a later dispute about length testable instead of a debate over which ruler was right.

The accepted sample can be run through the inspection station a second time. Write down the ID on the width gauge and on the length fixture; then match each one to its calibration sheet. A certificate for the lab in general is not the record for the instrument in the inspector’s hand.

Question at the bench Record to retain with the order
Which pulley profile and mold made this belt? Drawing revision, mold ID and tool inspection
Which cord and compound were used? Material and production lot references
How was the belt processed? Batch-linked cure or joining record
How were pitch and length accepted? Measurement method, result and gauge ID

05. A batch number should lead somewhere

Pick a finished belt from stock and give the factory its marking. Can it find the mold, cord lot, compound or PU batch, production date and final inspection? Then try the reverse: select a material lot and ask which finished belts used it. This is more revealing than asking whether the factory “has traceability” and receiving a yes.

The reject shelf matters too. Look at a rejected belt on the shelf and its disposition tag. It should have a recorded route to scrap, rework or an approved deviation. The signed sample and purchase order need matching drawing revisions.

06. Write the RFQ so two quotes describe the same belt

Use the pulley drawing as page one of the RFQ. Beside it, place the tooth form and count, width, material, cord and effective-length measurement method. Mark the construction as endless or open length and show any second set of teeth. The machine sheet supplies speed, load, smallest pulley and take-up travel. Where the belt touches conveyed goods, describe that surface in a separate line.

For pitch and length tolerances, write down the reference method and measuring load before adding a pass limit. A number copied from another profile may look exact and still be meaningless on this fixture. Request a first article with its dimension report, then define how subsequent batches will be sampled. At receiving, check marking, width, tooth form and length using the agreed method. A small trial on the actual machine can expose pulley mismatch that a bench measurement misses.

Request a synchronous belt quotation from SINOCONVE

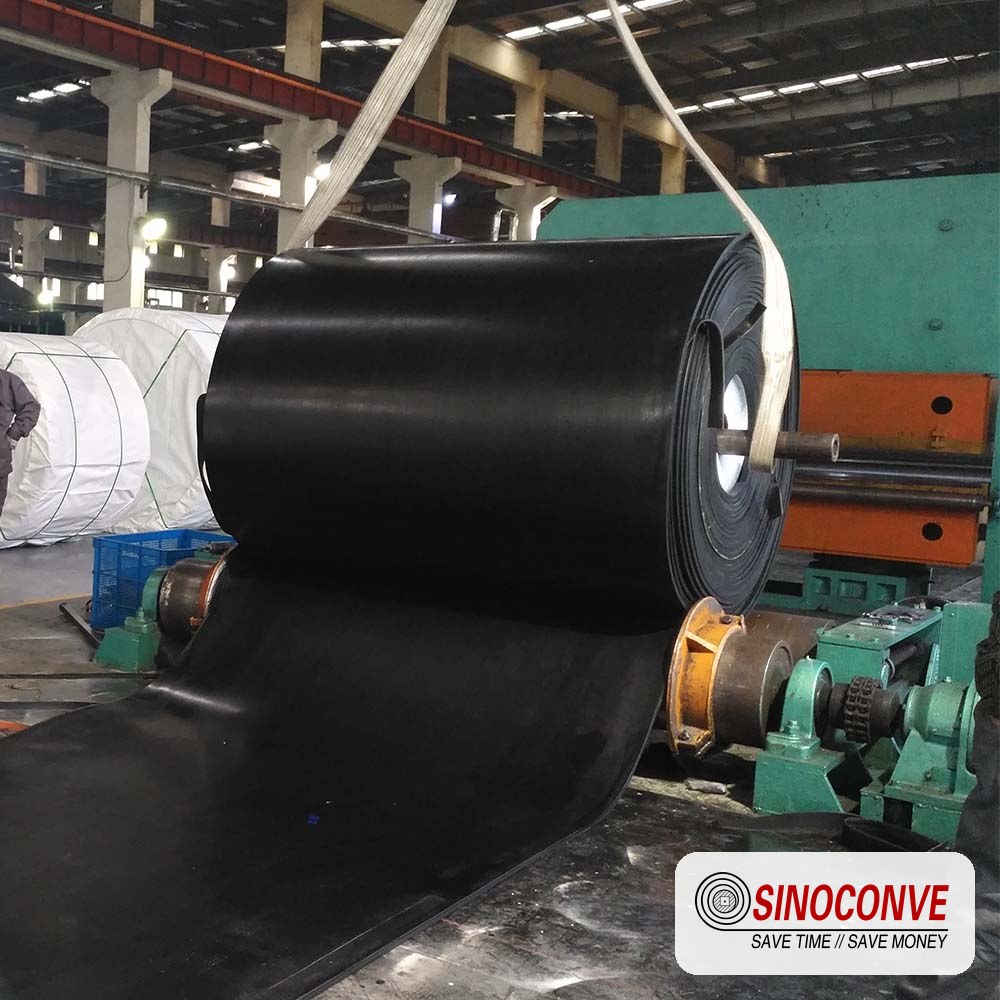

Workshop floor where timing belts are cut and assembled

SINOCONVE manufactures power-transmission belts, including rubber timing belts and PU timing belts. Send the pulley drawing with the enquiry. A catalogue name can then be checked against actual tooth geometry.

Frequently Asked Questions

Does one good sample settle approval?

It settles the sample check. For repeat orders, trace the later batch to its mold and materials and check whether its inspection used the same drawing.

How should incoming length be checked?

Use the agreed fixture and load. Keep the supplier’s report with the measuring method and instrument ID; measuring across a handful of teeth with a ruler will not resolve effective length.

What about a mold held outside the factory?

Find out who owns it, how it is inspected, and how its ID appears on the belt’s batch record. The outside step belongs on the process map.

Should the pulley be part of the audit?

Yes, at least its controlled profile drawing and condition. A worn pulley can spoil the trial, even if the sampled belt measures correctly. Photograph the pulley teeth before blaming the new belt.

What calls for another review?

A profile, cord, material, mold or process change is a reason. So is a recurring machine problem that appears only after a particular batch.
