A paper mill asks one belt to do three jobs at once: carry a wet, sticky load, live in steam heat, and hold a splice together over a run long enough that nobody wants to walk it. Each is an ordinary conveying problem on its own. Together, on one belt in one building, the usual answers stop working. This guide walks the five streams in a mill and shows where a general-purpose belt fails first.
01What Makes a Paper Mill a Different Belt Problem
A paper mill is a wet plant that runs hot. Most specifications that reach us were written for dry bulk, where abrasion is the enemy; here it is adhesion. Material rides past the discharge point, up the return strand, and off onto a floor nobody inspects. Line duty varies too: a bark line runs short and slow, while a pulp line crossing the mill is long, elevated and often loaded off-centre.
Where This Guide Stops and Our Other Guides Begin
We publish a separate page for each of these duties, so the split is worth stating. Our heat resistant conveyor belt ultimate guide works through cover grades and temperature classes, and it answers which grade to order. Ordinary return-side carryback that a well-set scraper clears belongs to conveyor carryback solutions and return side belt cleaning, both of which assume a blade can break the deposit. How a heavy carcass is built and bought sits in the steel cord conveyor belt selection guide for heavy duty use.
This page takes the overlap: sticky resin a scraper cannot break, steam arriving with moisture rather than as dry air, and a splice that must survive a long run under tension.
02The Five Streams: From Log Yard to Finished Reel
You cannot choose a cover until you know which stream the belt sits in. Five of them cover almost every belt in a mill.
| Stream and location inside the mill | What the belt actually carries through the mill | Where this stream fails first in service | What we would specify for it |
|---|---|---|---|
| Log yard, debarker infeed and bark transfer | Wet bark, loose fibre, grit and sand carried in with the logs | Bark wraps a pulley and lifts the belt off its idlers | Thick cover, wing-type pulley and a scraper plus water flush |
| Chip conveyor from chipper to silo or pile | Wet hardwood and softwood chips with fines and free water | Chips cling through the discharge and build on return idlers | Smooth cover with low surface energy and two scraper stages |
| Digester blow line and brown stock washing deck | Hot alkaline pulp carrying black liquor and dissolved wood solids | Cover swells, belt length changes and tracking drifts off centre | Alkali-resistant compound with a carcass rated for wet heat |
| Rejects, knots and sludge handling near the clarifier | Thixotropic sludge, lime grit and variable water content | Skirtboard pinches the edge where the load surges sideways | Abrasion grade cover with generous edge width and sealed idlers |
| Broke, trim and reel spool handling at the dry end | Dry paper trim, light broke and occasional tramp metal | Trim lifts at speed and lands inside the drive guard | Light fabric belt with a finger splice and low take-up tension |
Read down the third column: four of the five streams fail by adhesion rather than wear. Broke and trim are the exception.
03Wet Chips and Bark: Load, Stickiness and Carryback
Wood chips reach the conveyor between damp and dripping. Water sits in two places, and only one changes belt selection. Moisture inside the fibre alters weight and little else. Free water on the surface changes how the load moves in the chute and how much returns underneath.
A wet chip load is heavier than the bulk density in the tender document, because that figure is almost always quoted dry. Conveyors sized from a dry number then run at the edge of capacity, and the rubber conveyor belt survives while the take-up runs out of travel and the splice absorbs the difference.
When Chip Moisture Turns Into a Carrying Problem
Bark is a separate problem with the same root. It is stringy, it holds water inside the fibre, and long strands wrap a pulley instead of falling away. A bark wrap does not announce itself; it grows until the belt lifts off its idlers and the edge frays.
Our site test is crude and reliable. Stop the belt after a normal run and look at the return strand. If a boot sole leaves a clean line through the material there, the scraper is losing and no extra cover will save it.
04Pulp and Sludge: Chemical Exposure and Cover Selection
Pulp punishes a cover from the inside out. Cooked and washed pulp arrives hot, wet and alkaline, carrying liquor with dissolved wood solids in it. That liquor is the part people underestimate. It wets a cover thoroughly, and where the cover is even slightly permeable the liquid reaches the fabric underneath.
The result is a belt that grows. A swollen carcass is longer than the one fitted, so the take-up runs out of travel and tracking drifts unevenly across the width. You spend a month chasing alignment on a belt whose dimensions are moving.
Sludge behaves differently again. It is thixotropic, its water content swings with whatever the clarifier is doing, and it carries lime grit that abrades in a quiet, grinding way. A cover picked for chemical resistance alone thins at the skirtboard within a season. On any industrial conveyor belt doing this duty, the edge shows the compromise first. So we ask for immersion data in the actual liquor at the actual temperature, not a generic acid-and-alkali chart that says a family of compounds is usually acceptable.
05Heat and Steam: Where a Standard Cover Fails Early
Dry heat works on a cover from outside: it oxidises the surface, hardens it and eventually cracks it, and you can watch that happen and plan for it.
Why Saturated Steam Is Not the Same as Dry Heat
Steam works from the inside. A saturated atmosphere around a digester or under a machine hood drives moisture through the cover, and that moisture condenses at the cover-to-carcass interface, the coolest point in the stack. The bond there is a thin layer of compound and it goes first. This is what our heat resistant conveyor belt range is built around, and why a grade chosen on temperature alone still fails in a hood.
The symptom misleads people. A belt can run for months in steam and look sound, then blister along one edge after a maintenance shutdown. The water was already inside; idle time gave it somewhere to collect. That is why we ask a conveyor belt supplier whether the sample was aged in moisture or in dry air, because an air-oven result on a belt destined for a steam hood answers a question nobody asked.
06Resin and Pitch: The Carryback That Scrapers Cannot Clear
Pitch is the extractive fraction of wood: resin acids, fatty acids, sterols and the neutral compounds that travel with them. Around the digester it comes out of solution and cools into a layer that is part varnish, part glue.
Its behaviour tracks temperature in a way that defeats cleaning hardware. Warm pitch is soft and tacky, cold pitch is hard and brittle, and a belt cycles between both every time the line stops. A blade set for one state is wrong for the other.
What Resin Does to a Scraper Edge
A scraper concentrates stress at its tip. On a brittle layer that stress fractures the deposit and the blade peels the fragment away. Pitch does not fracture. It yields, smears under the tip and re-levels behind the blade, so the belt leaves the scraper looking clean and reaches the next pulley coated again. Blade pressure becomes friction heat along the contact line, softening the layer just enough to make the next pass harder.
What works removes the adhesion instead of fighting it. A cover compound formulated to shed sticky organic material leaves the deposit nothing to key into. A water flush where the belt is still warm lifts the pitch before it sets. The third change is cheap and counter-intuitive: stop over-tensioning the blade, because a light blade that leaves a film beats a heavy one that grooves the cover.
| Symptom you see on the conveyor | Mechanism running behind that visible symptom | Field criterion we use to confirm it | Corrective action that addresses the cause |
|---|---|---|---|
| Dark smear on the return strand under the head pulley | Pitch softened by residual heat and re-levelled by the scraper blade | The smear wipes off on a glove but resists a dry blade pass | Change the cover compound and add a warm-water flush at discharge |
| Cover blisters and lifts along one edge after a shutdown | Steam condensed at the cover-to-carcass interface while the belt sat idle | Pressing the blister releases water rather than air | Specify a compound tested under saturated steam, not dry heat alone |
| Splice step opens and the cover cracks across the joint | Tension cycling concentrates load at the splice under wet heat | Cracks begin at the step edge and run across the belt | Longer stepped splice with recorded cure pressure and hold temperature |
Field note from our engineers: A mill kept losing return idlers on a chip line. Every shutdown the crew scraped the build-up off the shells, and it came back. The scrapers were set right and the spray was running. What had changed was the wood mix, with more resinous species in the furnish. We left the cleaning hardware alone and changed the cover compound. The build-up stopped being a weekly job.
07Long Runs, High Tension and Splice Reliability
A mill layout pushes belts into long, elevated runs because the plant grew around the process. On those runs the splice is the only part made on site, by hand, in whatever time the window allows.
Splice Design for a Belt You Cannot Easily Reach
In practice the cover and the carcass stay sound and the belt fails at the joint. A splice is a hand-built structure standing in for a factory-made one, and everything hostile in a mill lands on it at once, concentrated in a length of belt shorter than a person.
Step geometry, the compound between the steps and the cure record are the variables that matter. A stepped splice with more, shorter steps spreads load over a longer length and tolerates cycling better than one with a few long steps. It costs hours in the window, which on an unreachable run is the cheapest part of the job. We also ask for the cure log: pressure, temperature and hold time, signed by the crew that did the work. Mills buying through wholesale conveyor belts channels often get the belt and not the record, so name it in the order. Our conveyor belt factory issues one with every spliced delivery.
08Tracking and Structure on Elevated Conveyors
Tracking gets blamed on belts far more often than belts deserve. On an elevated gallery the belt is the last item in a chain that starts with the steel structure, and steel moves.
A long gallery expands and contracts through the day, and the pulleys at each end do not move by the same amount. Add wind load, a chute re-hung after a modification, and a load landing off-centre because a skirt rubber wore through, and you have a frame that is no longer straight. A belt on that frame trains to one side and stays there.

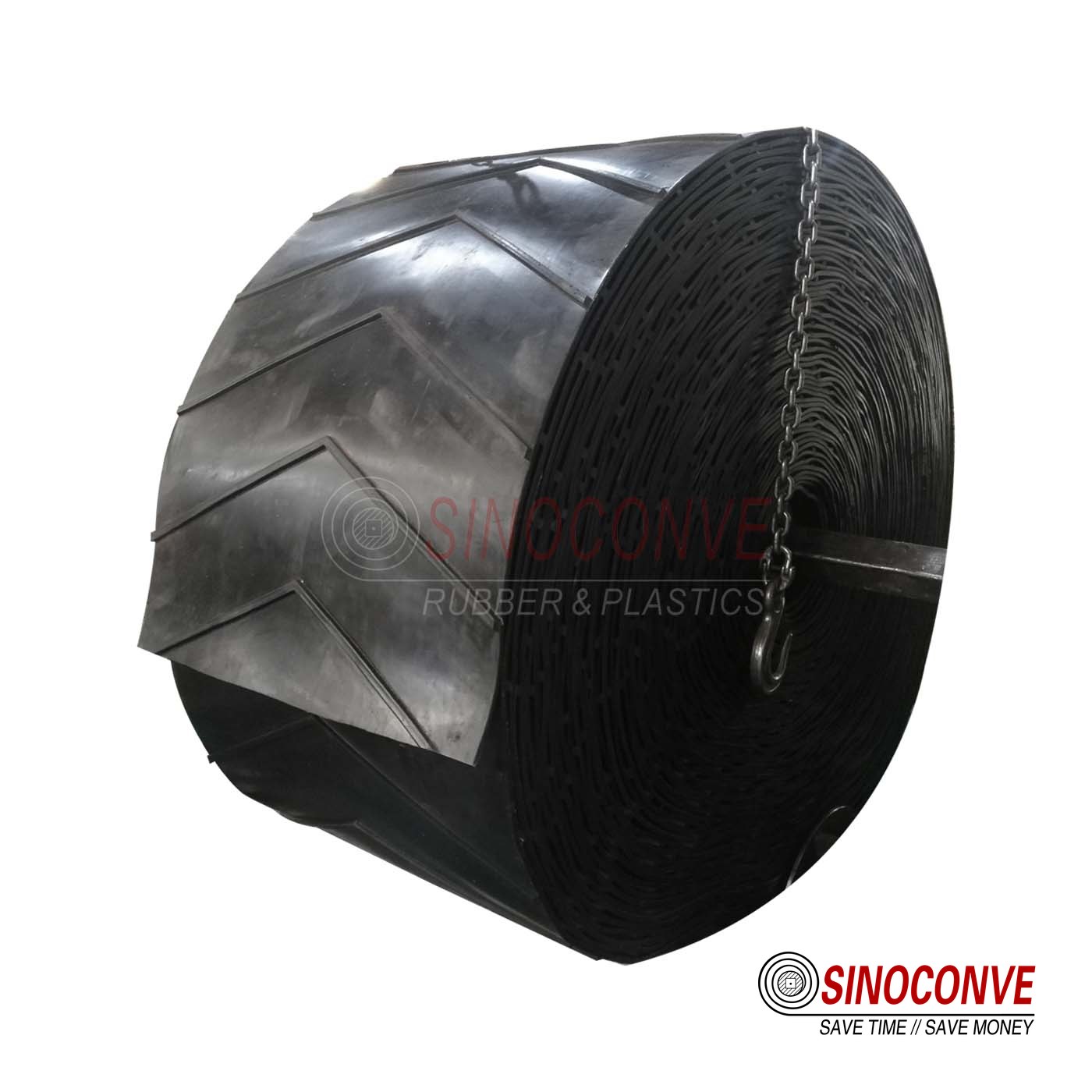

What we inspect first is not the belt edge but the return strand. Material built up on an idler shell changes that idler's effective diameter, and a belt climbing a ring of hardened fines follows the ring rather than the frame. Where an incline is steep enough that a smooth cover slips, a profile from a conveyor belt distributor changes load behaviour, though it will not correct a frame that has moved. Align with the belt tensioned and the structure at working temperature, not on a cold Sunday night.
09Cleaning Systems That Survive a Paper Mill
A cleaning chain has three jobs in sequence, and most installations only do the first properly. The primary scraper takes the bulk, the secondary takes what the first pushed past its tip, and the spray and brush take the film neither blade reaches. On a mill belt the film is the whole problem.
What We Change in the Cleaning Chain
Order matters because each stage changes the material the next one meets. A secondary scraper behind a chattering primary sees an uneven layer and wears in patches. A spray placed after both blades washes a surface already compressed twice.
For sticky loads we move the water upstream. Flushing while the belt is warm and the deposit still soft does more than any blade adjustment, and it is the only change that helps when the deposit is pitch rather than dust. On pulp lines we also watch where the water goes, because a flush pooling under the take-up trades a cleaning problem for a corrosion one. Brush drives fail quietly too: a drive that slips under load looks like a cleaning fault and is usually a tension fault, which is why we keep a transmission belt manufacturer range beside the conveyor range.
10Material and Grade Selection by Stream
Carcass first. Short, slow bark and chip runs are usually fabric. Long, high-tension runs carrying pulp or chips across the plant are usually steel cord, and if the run is long enough that argument wins on its own. Between the two, EP fabric covers most of what a mill needs, and the EP versus NN question is worth settling early because it changes the splice as well as the belt. We keep that comparison in a separate note on ep vs nn conveyor belt so it is not re-argued on every enquiry.
Cover second, and this is where a mill diverges from a quarry. Abrasion resistance is not the limiting property in four of the five streams. Resistance to wet heat, to the process liquor and to sticky deposits decides the outcome, and those three pull in different directions. Drives get forgotten in the same conversation. Fan pumps, agitators and repulper rotors run on V-belts, and a V-belt manufacturer used to wet, warm plant rooms quotes a different construction from one supplying a dry warehouse. As a conveyor belt manufacturer we would rather see the whole drive schedule than a single line item, because the belt that fails first is rarely the one being replaced.
11Shutdown Planning, Spares and Acceptance Checks
A mill buys a belt for a shutdown window, not a catalogue. Everything that matters happens inside that window, and the checks happen before the line restarts. Afterwards everyone is busy and nobody is measuring.
Documents Worth Requesting Before the Window Opens
The document pack tells you whether the supplier understood the duty. A data sheet naming the base polymer and test methods can be checked against your failure history; one that lists properties without saying how they were measured cannot.
| What to request before the shutdown | What that document actually proves to a buyer | How we test the same thing on site |
|---|---|---|
| Compound data sheet naming the base polymer and test methods | That the cover was formulated for the duty you described | Compare the stated method against the failure you already have |
| Splice cure log with pressure, temperature and hold time recorded | That the joint was made to a procedure rather than by feel | Witness one splice and sign the log yourself |
| Pulley and idler alignment report taken with belt tension applied | That the frame is straight before the belt is blamed | String line along the gallery and a laser on pulley faces |
| Written cleaning plan covering scraper, spray and brush positions | That carryback has a named owner after commissioning | Run wet material for one shift and inspect the return strand |
Spares deserve their own plan: one splice kit for the belt style actually installed, one length long enough to replace a damaged section, spare scraper blades, and a cure log template. Mills holding those four restart faster than mills holding a spare belt alone. A kit arriving three days after the failure has cost more than one that sat on a shelf for a year.
12Frequently Asked Questions
What is the main cause of belt failure in a paper mill?
Adhesion, more often than abrasion. Material that leaves the discharge point on the belt instead of in the chute ends up on the return strand and the idlers, and the damage follows from that. Cover wear is usually second.
Can a standard heat-resistant belt handle a steam environment?
Not reliably. A compound rated on dry-heat ageing can pass every oven test and still fail at the cover-to-carcass bond once saturated steam has condensed inside the belt. Ask what the sample was aged in. If the answer is hot air only, the data does not describe your duty.
Why do scrapers stop working on resin and pitch?
Because pitch does not fracture the way a mineral dust layer does. A scraper tip concentrates stress and breaks a brittle deposit away, while pitch yields, smears and re-levels behind the blade. Blade pressure adds friction heat, and that heat softens the layer further.
When should a paper mill belt be inspected?
The shutdown windows, and the first shift after any change in wood mix or process chemistry. A belt that was fine last quarter can be carrying a different resin load this quarter. Walking the return strand at the end of a run tells you more than a calendar does. It takes ten minutes.
Does belt speed affect how much material carries back?
It changes the mechanism more than the quantity. At higher speed the load has less time to release at the head pulley, so more leaves with the belt and the layer at the scraper is thinner and hotter. Thin and hot is the worst case for pitch.
Which belt works best for wood chips?
For most chip conveyors, a fabric carcass with a smooth cover formulated to shed wet fibre, two scraper stages and a water flush at the discharge. On a short run the cover matters more than the carcass. Where chips travel far out of the pile, the carcass decides.
Is a steel-cord belt always the right choice for a long run?
No. Steel cord earns its place when tension and span make a fabric carcass impractical, and it brings its own requirements for pulley diameter, splice quality and inspection. A long run at moderate tension can be a fabric belt with a good stepped splice, easier to repair with limited lifting gear.
What should we keep in spares for a mill belt?
A splice kit for the belt style actually installed, a length long enough to replace a damaged section, spare scraper blades, and a cure log template. Those four cover most of what stops a mill at three in the morning. A spare belt with no kit is an expensive way to feel ready.
