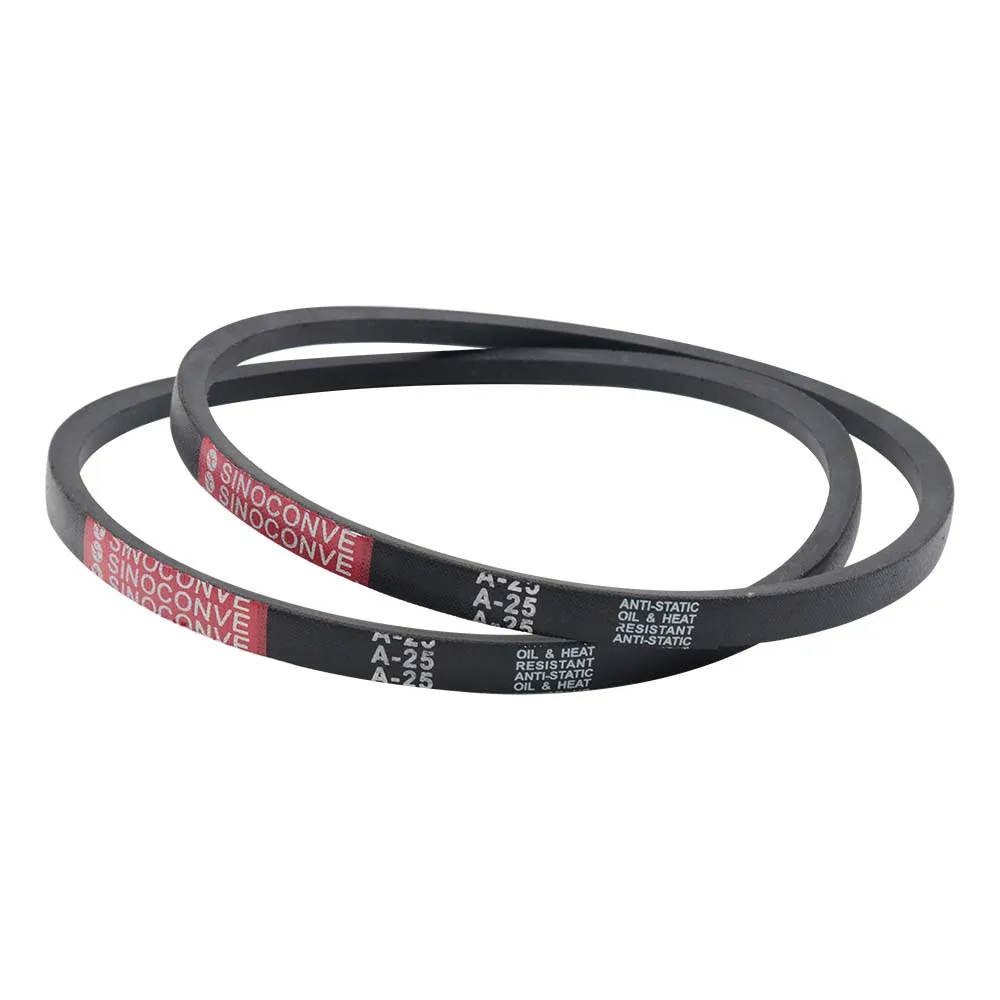

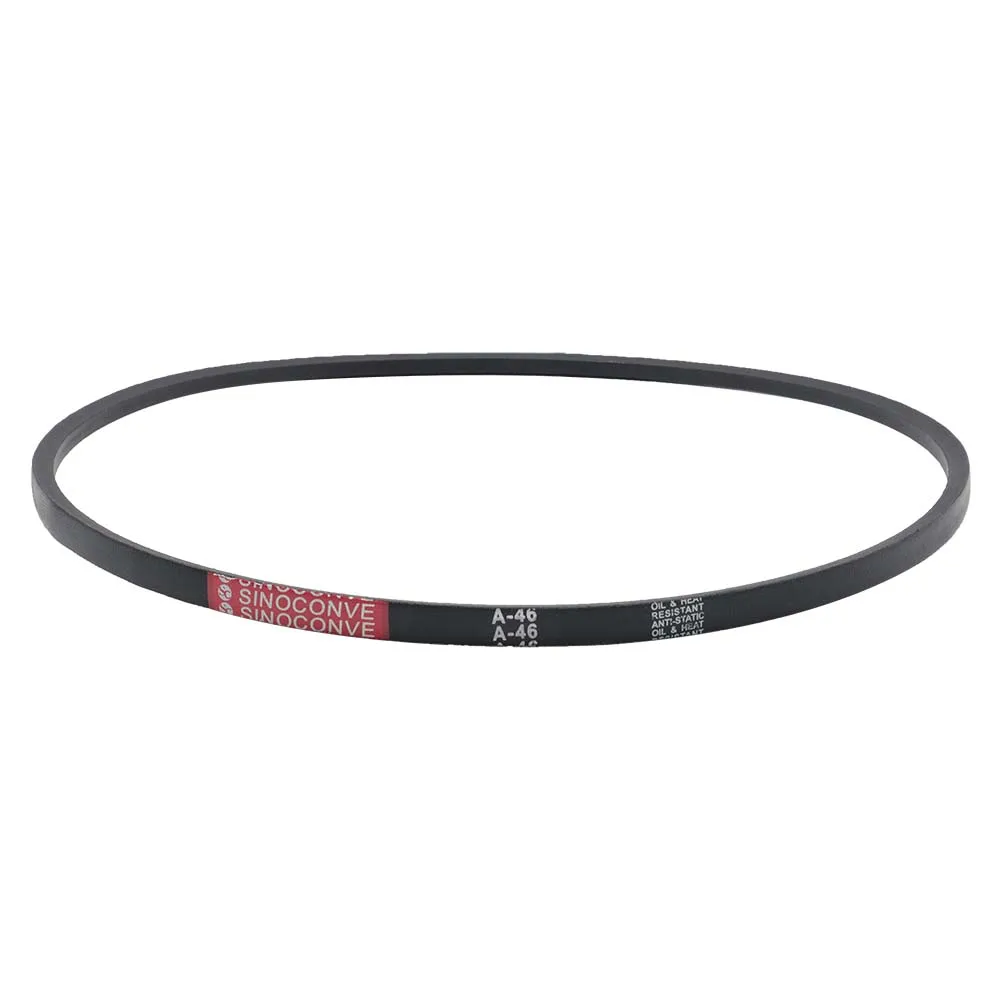

SINOCONVE AX High Load Transmission Cogged V-Belt for Industrial Drives
The SINOCONVE AX transmission cogged V-belt is positioned for industrial pulley drives that require an AX-marked belt configuration. The supplied material lists NR/SBR top, buffer and bottom rubber, polyester cord reinforcement and polyester-cotton outer canvas. Its notched construction is intended for demanding transmission layouts where belt marking, pulley groove and finished length must be matched before replacement.
For an accurate AX quotation, record the full marking on the existing belt, measure the finished length, check the pulley groove and provide center distance, shaft alignment, running speed, transmitted load and available tension adjustment.
Request an AX drive review
Click Inquiry Now and provide the belt marking, measured length, pulley groove, center distance, motor speed, load, quantity and working conditions.
AX product overview
| Product | AX high load transmission cogged V-belt |
| Marking | AX, to be confirmed against the complete belt marking |
| Drive type | Cogged V-belt friction transmission with compatible pulley grooves |
| Rubber layers | NR/SBR top, buffer and bottom rubber, as listed in the supplied material |
| Reinforcement | Polyester cord |
| Outer fabric | Polyester-cotton canvas |
Performance information to confirm
The supplied content describes multiple special designs, equal power transmission, high-load capability, low elongation, long service life, operational safety, static conductivity to ISO 1813, and resistance to oil, heat, ozone and abrasion. It lists a temperature range from -55°C to 70°C. Confirm the selected AX compound, test documentation and actual service range before treating these statements as fixed guarantees.
Multi-layer cogged construction

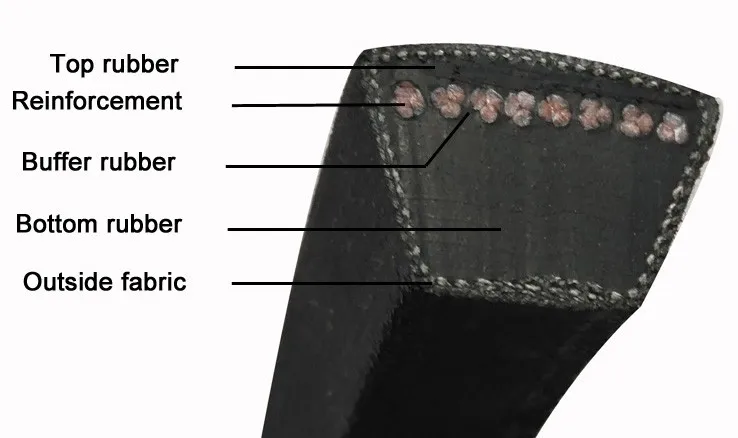

Rubber layer configuration
The supplied structure identifies NR/SBR top rubber, buffer rubber and bottom rubber. This layer description should be matched with the confirmed AX construction and service conditions.
Polyester cord reinforcement
Polyester cord is listed as the reinforcing member. Motor power, speed, load and start-stop pattern should be reviewed before final selection.
Special design options
The supplied property list references multiple special designs and equal power transmission. Confirm the requested design, belt marking and application conditions before quotation.
Operating-condition matching
Oil, heat, ozone, abrasion, dust and tension conditions should be reviewed together with pulley diameter and machine duty.
Equipment applications
The supplied material references blending systems, choppers, HVAC systems, lawnmowers, compressors, crushers and scarifiers. These are application references, not a substitute for a machine-specific drive calculation or compatibility review.
AX replacement checklist
- Record the complete marking on the removed belt and verify the AX designation.
- Measure the finished belt length and check the pulley groove dimensions.
- Note sheave diameter, center distance, shaft layout, alignment and tension travel.
- Provide motor power, running speed, transmitted load and start-stop frequency.
- Describe exposure to oil, heat, ozone, abrasion, dust, chemicals and moisture.
- Confirm quantity, packaging and any required inspection or technical documents.

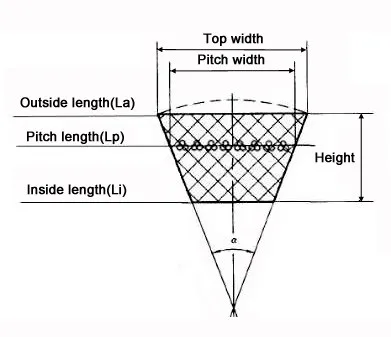

Specification reference and AX confirmation
The supplied tables include classical sections Z/FM/O, A, B, C, D and E; narrow sections 3V, 5V, 8V, SPZ, SPA, SPB and SPC; light-duty references 3L, 4L, 5L and 8.5 × 8; and raw-edge/cogged references RB, RC, RD, RE, R3V, R5V, R8V, RSPZ, RSPB and RSPC. They do not provide a standalone row labelled only “AX”. Keep AX as the product listing designation and confirm the AX-specific finished dimensions, length code and pulley profile before publication or quotation.
Additional section references
Discuss the correct AX configuration
For a quotation, send the AX marking together with the existing belt length, pulley details, center distance and operating load. The belt team can then review whether the requested section and finished dimensions match the current drive arrangement.
Request an AX belt review
Click Inquiry Now to send your machine type, AX marking, measured length, pulley dimensions, speed, load and quantity.
Suggested inquiry: “Please review an AX transmission cogged V-belt for [machine], marking [ ], measured length [ ], pulley details [ ], center distance [ ], speed [ ], load [ ] and quantity [ ].”
Production process
Cooperative partner reference
Company information
Frequently asked questions
What does AX refer to in this product listing?
AX is the belt designation used in the product title and listing. Confirm the complete marking, finished length and pulley groove before ordering because the supplied tables do not include a standalone AX dimensional row.
Which machines are referenced for this belt?
The supplied material references blending systems, choppers, HVAC systems, lawnmowers, compressors, crushers and scarifiers. Actual suitability depends on the drive geometry and duty cycle.
What materials are listed for the AX construction?
The supplied material lists NR/SBR rubber layers, polyester cord and polyester-cotton outer canvas. Confirm the final compound and supporting documentation for the intended service conditions.
How can I request a quotation?
Use the Inquiry Now link and include the AX marking, finished length, pulley data, operating conditions and quantity.
