Engineered belt solutions for demanding industries worldwide
--- Multiple special designs
--- Equal power transmission
--- High loads,low elongation and long service life
--- Excellent operational safety
--- Temperature range from -55℃ to 70℃
--- Static conductive to ISO1813
--- Oil,heat,Ozone and abrasion resistant
Top rubber: NR,SBR
Reinforcement: Polyester cord
Buffer rubber: NR,SBR
Bottom rubber: NR,SBR
Outside fabric: Polyester cotton canvas
-- Blending systems
-- Choppers
-- HVAC systems
-- Lawnmowers
-- Compressors
-- Crushers
-- Scarifier

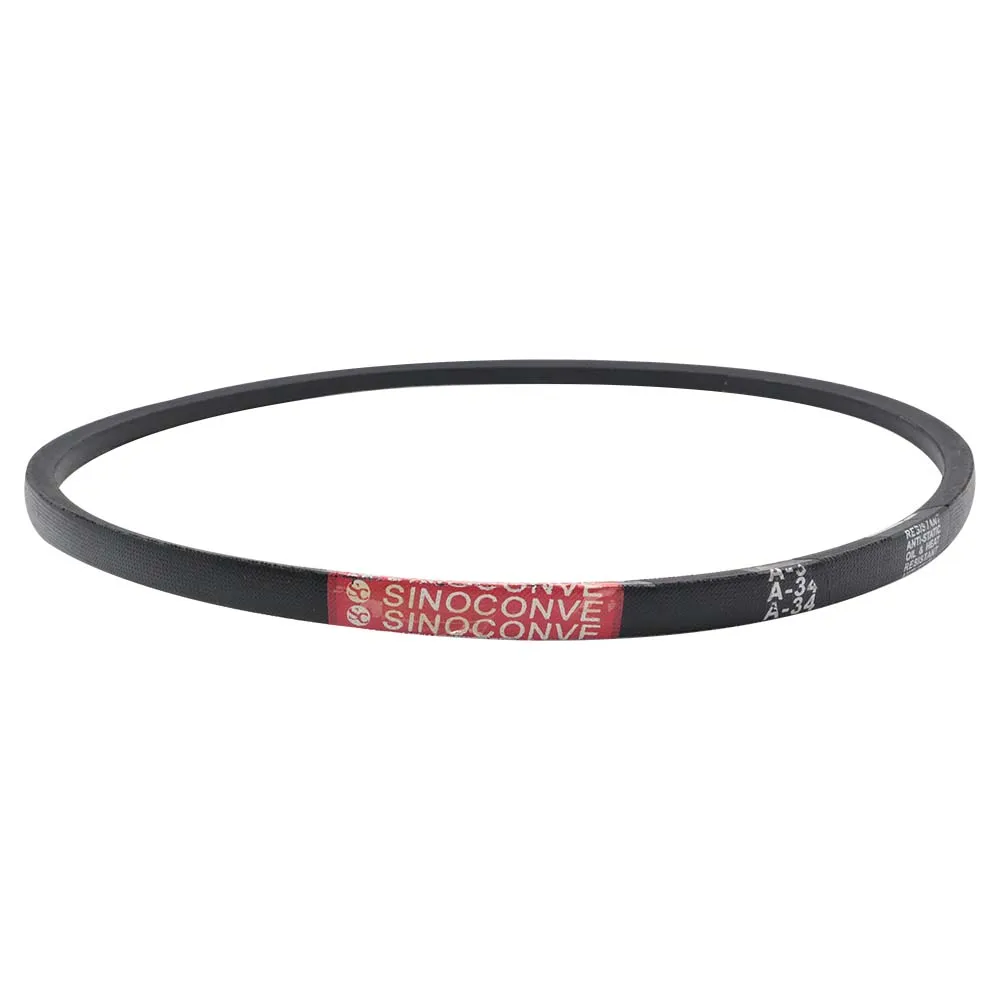

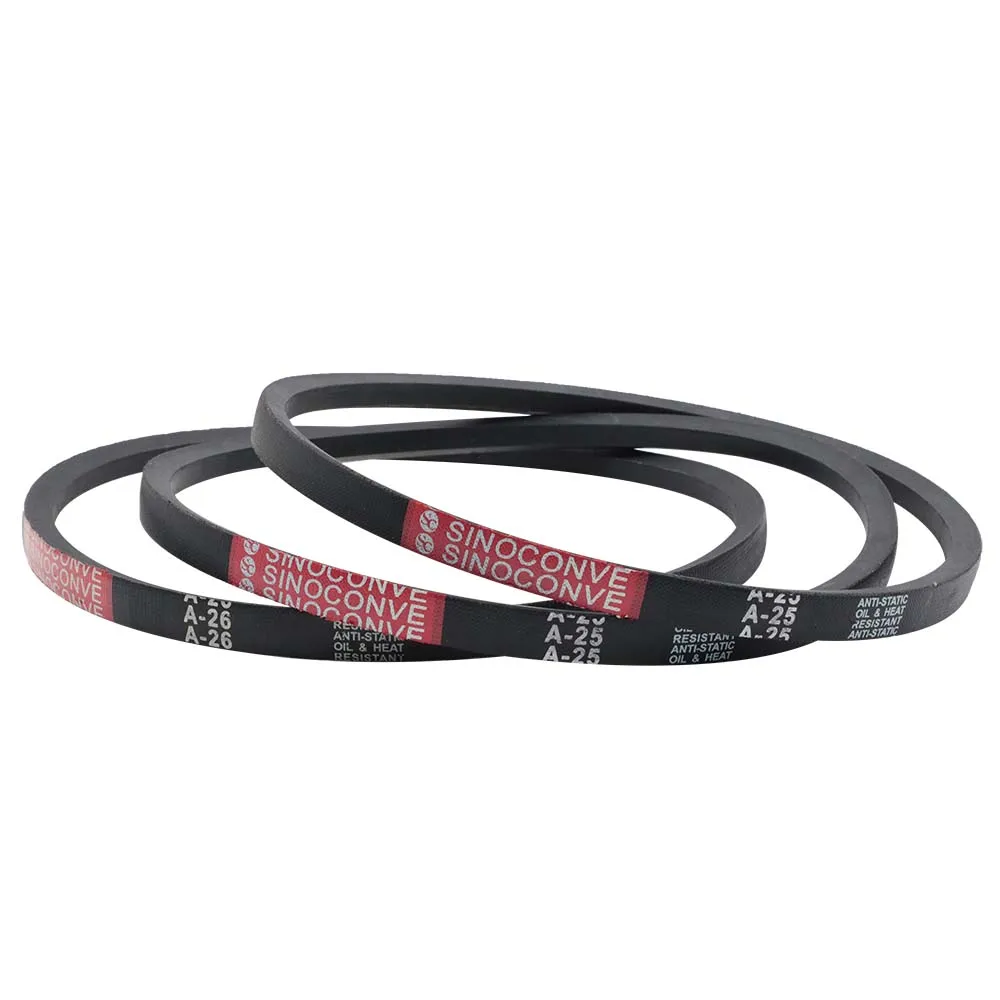

Classical V belt:
|
Type
|
Top width
|
Pitch width
|
Height
|
Length range
|
Angle
|
|
|
mm
|
mm
|
mm
|
mm
|
|
|
Z/FM/O
|
10
|
8.5
|
6
|
280---2480
|
40°
|
|
A
|
13
|
11
|
8
|
330---8000
|
40°
|
|
B
|
17
|
14
|
11
|
457---17000
|
40°
|
|
C
|
22
|
19
|
14
|
700---17000
|
40°
|
|
D
|
32
|
27
|
19
|
1100---17000
|
40°
|
|
E
|
38
|
32
|
23
|
3300---17000
|
40°
|
Narrow V belt:
|
Type
|
Top width
|
Pitch width
|
Height
|
Length range
|
Angle
|
|
|
mm
|
mm
|
mm
|
mm
|
|
|
3V
|
9.5
|
/
|
8
|
375--3353
|
40°
|
|
5V
|
16
|
/
|
13.5
|
795---17000
|
40°
|
|
8V
|
25.5
|
/
|
23
|
2500---17000
|
40°
|
|
SPZ
|
10
|
8
|
8
|
375---3353
|
40°
|
|
SPA
|
13
|
11
|
10
|
475---7200
|
40°
|
|
SPB
|
17
|
14
|
14
|
750---17000
|
40°
|
|
SPC
|
22
|
19
|
18
|
1350---17000
|
40°
|
Other special types:
|
Type
|
Top width
|
Pitch width
|
Height
|
Angle
|
|
|
mm
|
mm
|
mm
|
|
|
3L
|
9.8
|
/
|
5.6
|
40°
|
|
4L
|
12.7
|
/
|
8
|
40°
|
|
5L
|
16.8
|
/
|
10.5
|
40°
|
|
8.5*8
|
10.5
|
8.5
|
8
|
40°
|

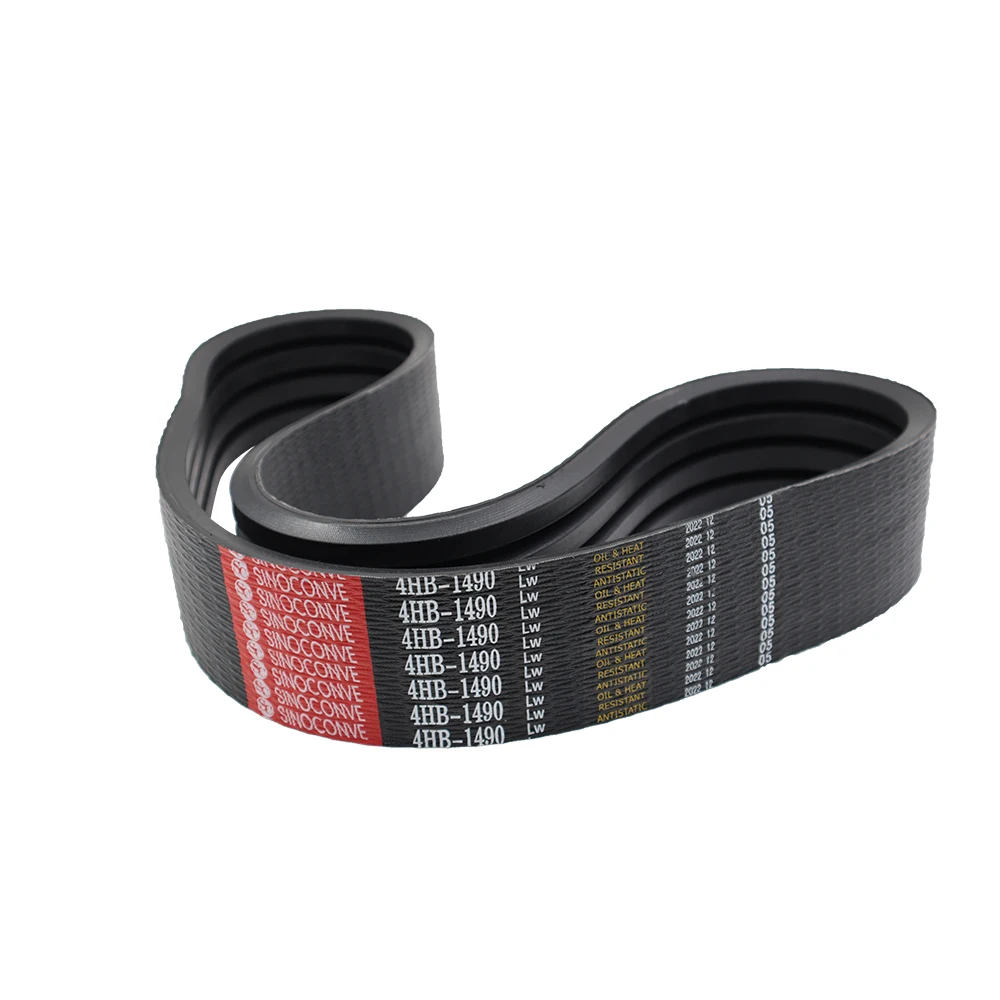

Banded Jointed Rubber V belt:
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
Low MOQ, 1pc for sample checking is available
Yes. Please inform us your logo or design before mass production
