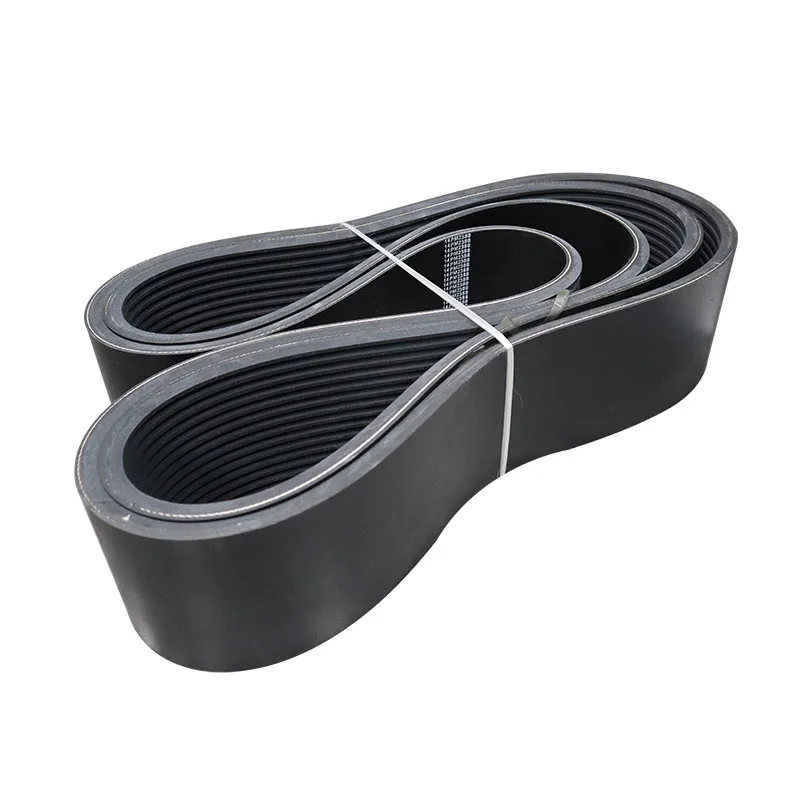

SINOCONVE PM Ribbed V-Belt for Truck Fan Drives and Power Transmission
SINOCONVE PM ribbed V-belts are positioned for compatible truck fan drives and compact multi-rib power-transmission systems. The ribbed section transmits torque through contact between the belt rib flanks and pulley grooves, providing a larger contact surface than a single V-belt or flat-belt arrangement. Confirm the vehicle or equipment model, original belt marking, finished length, rib profile, pulley geometry, speed and load before ordering.
Request PM ribbed-belt profile matching
Use Inquiry Now and provide the truck/equipment model, original belt marking, rib profile, rib count, finished length, pulley data, speed, load, quantity and target delivery date.
What is a ribbed V-belt?
The supplied description identifies a power-transmission belt with multiple longitudinal ribs. Torque is transmitted by contact between the rib flanks and pulley grooves. The multi-rib arrangement provides a larger contact surface than a conventional V-belt or flat-belt arrangement, subject to correct profile and pulley matching.
Drive benefits described in the supplied detail
- Excellent flexibility
- High power-transmission efficiency
- Reduced noise and smooth running
- More power in less space
- Friction and wedge advantages for the ribbed section
Material and operating information
The supplied material describes high-grade engineered rubber, longer service-life positioning, and resistance to oil, heat, ozone and abrasion. It gives a temperature range of -50°C to +120°C. Confirm the selected compound, test report and actual operating limits before presenting these as truck-specific guaranteed specifications.
PM ribbed profile specification
| Type | Pb | h | Angle |
| PH | 1.6 mm | 3 mm | 40° |
| PJ | 2.34 mm | 4 mm | 40° |
| PK | 3.56 mm | 6 mm | 40° |
| PL | 4.7 mm | 10 mm | 40° |
| PM | 9.2 mm | 17 mm | 40° |
The supplied material does not provide a PM-specific finished-length range, rib count, truck brand/model, OEM part number, pulley diameter, speed rating, torque rating, price or live inventory. Confirm these details before quotation.
Truck fan-drive application boundary
The supplied product title identifies a truck fan-belt use case. Final suitability depends on the exact truck or equipment model, original marking, rib profile, rib count, finished length, pulley geometry, fan speed, torque, alignment and tension. Do not treat this listing as a universal vehicle-compatibility statement.
Production and package references
The supplied detail includes forming/coiling, vulcanizing, grinding and carton-packaging references. Confirm final packaging, logo and shipping arrangement for the requested PM belt.
Applications
The supplied application module contains reference images. Use the exact belt profile and equipment requirements to confirm suitability.
OEM, packaging and supply service
- OEM/ODM production from drawings, samples or special requirements
- Logo, colour and packaging customization
- V-belt MOQ generally 30–50 pcs depending on type; confirm the PM ribbed-belt model separately
- Usual delivery is about 30 days; urgent scheduling may be about 15–20 days subject to confirmation
- Standard or small test samples can be discussed for the requested belt
Quality support from Ningbo Sinoconve Belt Co., Ltd.
The supplied company information states that the factory was established in 1988 and has more than 35 years of industry experience. It describes incoming-material inspection, in-process inspection and final inspection before shipment. ISO certificates and product test reports can be provided, while third-party testing can be arranged for special requirements.
Truck fan-belt inquiry checklist
- Truck or equipment brand, model, model year and engine/fan-drive information
- Original belt marking or part number
- Rib profile: PH, PJ, PK, PL or PM
- Rib count and finished length
- Pulley groove profile, diameter, center distance and routing
- Engine power, fan speed, torque and operating duty
- Tensioner, alignment, temperature and contamination conditions
- Required quantity, packaging, logo and target delivery date
Request a PM ribbed fan-belt quotation
Use Inquiry Now to send the truck/equipment model, belt marking, rib profile, rib count, finished length, pulley data, operating conditions and quantity.
Suggested inquiry: “Please quote a PM ribbed V-belt for [truck/equipment], model [ ], original marking [ ], profile [ ], rib count [ ], finished length [ ], pulley details [ ], speed [ ], torque [ ], quantity [ ] and target delivery date [ ].”
Frequently asked questions
What is a PM ribbed V-belt used for?
It is positioned for compatible truck fan drives and compact multi-rib power-transmission systems. Confirm the exact equipment and belt marking before ordering.
What PM profiles are listed?
The supplied table lists PH, PJ, PK, PL and PM with Pb, h and 40° angle reference values. It does not provide a universal finished-length or vehicle-compatibility list.
What materials and performance points are supplied?
The supplied detail describes high-grade engineered rubber, flexibility, smooth running, high power transmission, reduced noise, compact ribbed contact, and resistance to oil, heat, ozone and abrasion. The stated temperature range is -50°C to +120°C.
What is the usual MOQ and delivery time?
Company information states that V-belt MOQ is generally 30–50 pcs depending on type. Usual delivery is about 30 days, with urgent arrangements of about 15–20 days subject to production confirmation.
Can OEM/ODM and custom packaging be requested?
Yes. The supplied company information states that production can be customized from drawings, samples or special requirements, with logo, colour and packaging customization available.
How can I request a quotation?
Use the Inquiry Now link and include the equipment model, profile, rib count, length, pulley data, operating conditions and quantity.
