Name: SINOCONVE Rubber Cushion Impact Idler Roller for Conveyor Loading Zone and Chute Points
Brand: SINOCONVE
Availability: OutOfStock

Loading Zone Belt & Impact Protection

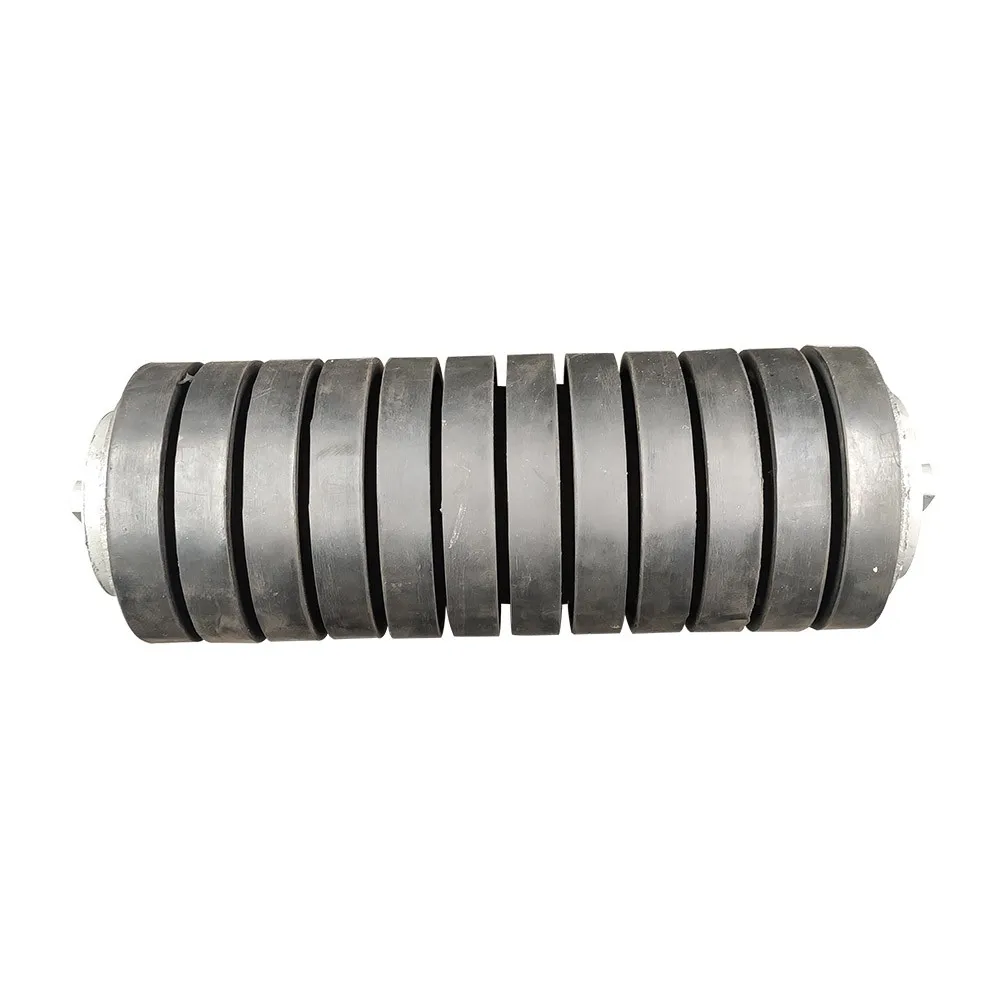

Rubber Cushion Impact Idler Roller for Conveyor Loading Points

Designed specifically for conveyor feed zones and transfer chutes. Heavy-duty segmented rubber rings absorb falling lump impact, preventing belt carcass damage and reducing frame stress.

Maximum Shock Absorption Under High Drop Heights

When heavy lumps of ore, limestone, coal, or rock drop onto a moving conveyor belt, standard steel rollers create severe shock loads that puncture belts and destroy bearings. Our rubber cushion impact rollers replace plain steel shells in loading cradles to dampen impact energy instantly.

High-Energy Absorption

Thick-section wear-resistant rubber discs flex under dynamic lump impact to dissipate kinetic force.

Belt Carcass Protection

Eliminates rigid steel pinch points, preventing longitudinal tearing and ply delamination.

Heavy-Duty Core Shaft

Reinforced cold-drawn round steel shaft resists bending under heavy continuous shock loads.

Technical Specifications

Specification Item	Standard Range	Engineering Options
Product Category	Rubber Ring Impact / Buffer Idler Roller	Troughing / Flat impact cradles
Outer Diameter with Rubber (D)	Ø89, Ø102, Ø108, Ø114, Ø127, Ø133, Ø159, Ø194, Ø219 mm	Custom outer rubber diameters
Steel Tube Base Pipe	High-grade carbon steel pipe (wall thickness 3.5 – 6.0 mm)	Heavy-wall seamless steel pipe
Roller Face Length (L)	190 mm – 3000 mm	Suits belt widths 400 – 2400 mm
Rubber Ring Material	Natural Rubber (NR) / SBR / Polyurethane (PU)	Flame-retardant anti-static (FRAS)
Shaft Diameter (d)	Ø20, Ø25, Ø30, Ø35, Ø40, Ø45 mm	Standard milled ends / Custom slot
Bearing Types	6204, 6205, 6305, 6306, 6307, 6308, 6310 (2RS / ZZ)	High dynamic load ratings / C3
Sealing Structure	Multi-Labyrinth Seal + Outer Dustproof Deflector	Waterproof & slurry-resistant IP65
Manufacturing Standards	CEMA, ISO 1537, DIN 22107, JIS B8803	Customized client drawings

Recommended Installation Points

Conveyor Loading Chutes: Installed directly below hopper drop zones to cushion lump impact.

Primary Crusher Discharge: Protects belts from sharp, jagged run-of-mine ore and rock.

Conveyor Transfer Towers: Dampens belt stress at high-velocity material diversion points.

Ship Loading & Rail Car Dumps: Handles surge feed impact during high-tonnage bulk unloading.

Frequently Asked Questions

Q1: What spacing should be used for impact rollers under the chute?
Impact idlers are typically placed close together (often 300 mm to 600 mm center-to-center) to form a continuous supportive cushion under the loading chute.

Q2: How do rubber cushion rollers prevent rubber rings from shifting?
Rubber rings are press-fitted under high interference onto the steel core and locked in place with welded steel end retaining rings.

Q3: Can these impact rollers be used in coal mines requiring flame retardancy?
Yes. We supply certified FRAS (Flame-Retardant and Anti-Static) rubber rings suitable for underground mining safety standards.

Get a Factory Quote for Rubber Cushion Impact Rollers

Share your belt width, drop height, lump size, roller dimensions, or drawings for rapid matching.
