Cost-Effective Conveyor Idler Roller for Crushed Stone and Quarry Material Handling

Conveyor idler rollers support the movement of crushed stone, quarry materials and other bulk loads through material-handling systems. Roller diameter, face length, bearing configuration, shaft geometry and conveyor-frame fit should be matched to the actual installation before ordering.

Conveyor idler roller types

Standard conveyor idler roller

Comb cleaning roller

Steel conveyor roller

Impact roller

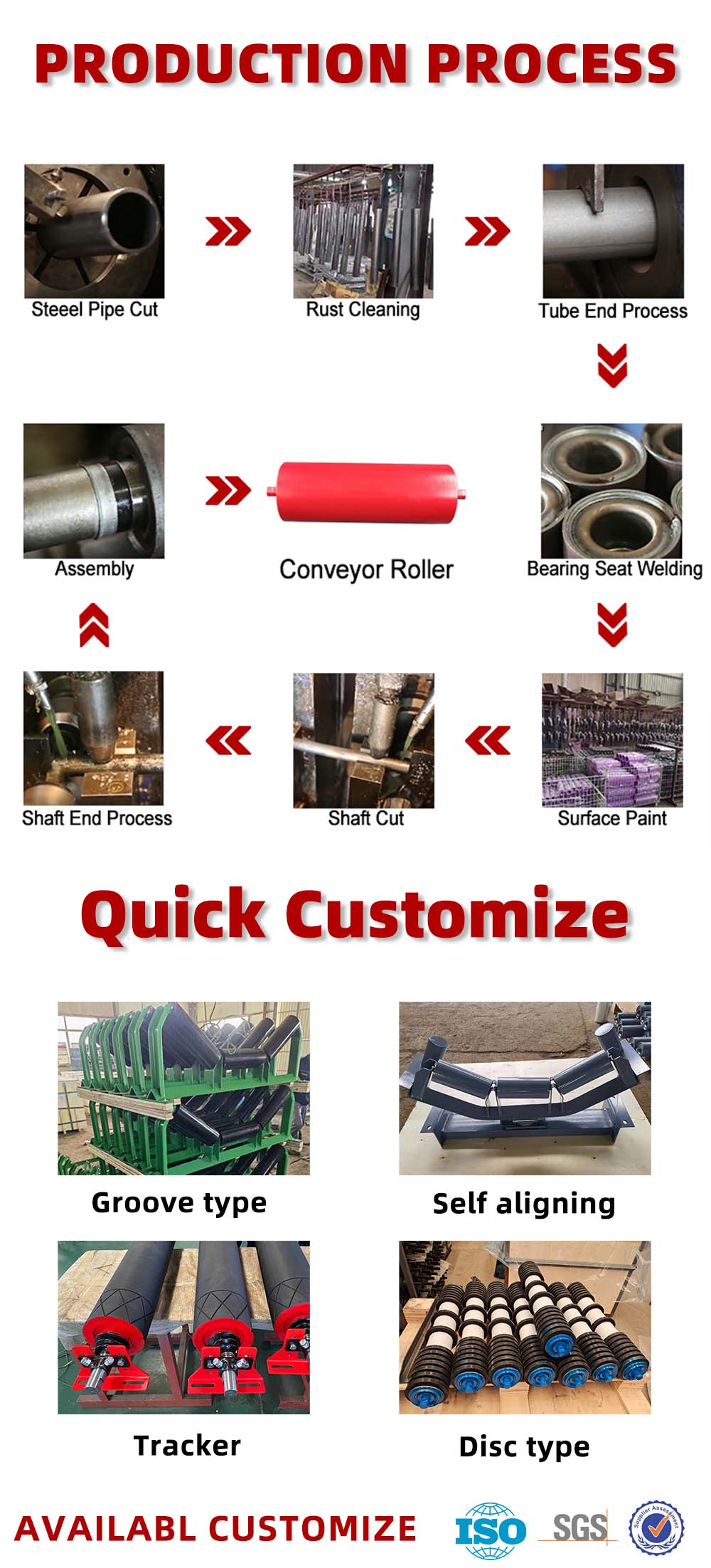

Production process

The supplied process reference shows steel pipe cutting, rust cleaning, tube-end processing, bearing-seat welding, assembly, shaft processing and surface painting before the conveyor roller is completed.

Production capacity and factory references

Production capacity, inspection, packaging and delivery should be confirmed according to the selected roller configuration, order quantity and destination.

Roller structure and technical drawing

The drawing reference identifies the shaft, seal, support, bearing and roller shell. Confirm the actual roller diameter, face length, shaft dimensions, bearing model, seal arrangement and mounting method from the final drawing.

The buffer-roller drawing is a related construction reference. Confirm the required roller type and application before quotation.

Reference conveyor idler roller specifications

The reference page lists the following diameter, face-length and bearing combinations. These are reference options, not confirmation that every combination is available for every order.

Confirm exact diameter, face length, bearing model, shaft, seal, wall thickness, runout and frame compatibility from the final drawing.

Additional roller references

This drawing presents a plain roller shell and end-shaft reference. It is included for dimensional discussion and does not replace a project-specific drawing.
